Turing Computation of the Natural Numbers

by Corry Shores
[Search Blog Here. Index-tags are found on the bottom of the left column.]

[Central Entry Directory]
[Computation Entry Directory]

Turing Computation
of the Natural Numbers

We will now build from our previous post on Turing machines. What we want is a mechanical computation of the natural numbers.

[I obtain the following program from Peter Bradley's wonderful animated site on Turing Machines.]

Our abstract machine will compute the natural numbers and display them in binary. So it is a "binary counter" machine.

This is its program, displayed as a "machine table." The S represents the number that the machine is reading. The subscript '0' means it would be a zero, and the subscript '1' means it is a one.

The q's stand for the two different instructions. L means to move left. R means to move right. There are two boxes for each q instruction, because the machine will see either of two symbols (1 or 0), and according to which one, it will perform some distinct task. We could articulate the instructions this way.

q1) If the scanned symbol is zero, write a zero overtop of it, move to the left, and begin instruction q1. If the scanned symbol is one, write a one overtop of it, move to the right, and begin instruction q2.
q2) If the scanned symbol is zero, write a one instead, move to the left, and begin instruction q1. If the scanned symbol is one, write a zero instead, move to the right, and begin instruction q2.

We will follow it through all the steps leading to its count of four.

It begins on a zero.

All the other boxes are zero except for one. At two spaces to the left of the starting point, there is a '1'. We do not read this with the number. Its function is to 'bump' the machine back to the right so it may continue its adding. All the boxes to the right of the bumper are the binary digit places that display each new counted number as it is added. However, this display shows them inversely. Hence we need to think of the ascending digit places moving to the right. So normally 100 equals four in binary. But here it would be displayed as 001.

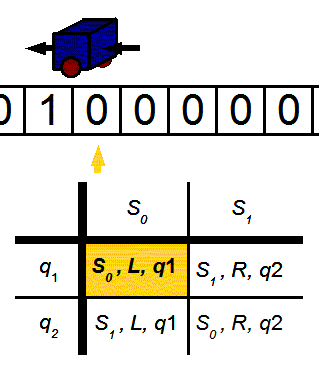

So the machine finds itself at the second zero. We place a yellow arrow wherever the machine is found at the start of the given instruction. It always moves at the end of the instruction. We display its direction with black arrows.

We begin at the first instruction q1. Because the machine starts at a zero, we look to S0. It tells the machine to write a zero, and to move to the left. There is already a zero there, so nothing changes.

Likewise for the next step. Instruction q1 repeats.

But now the machine stands above a '1'.
It writes a '1' again, then it moves to right and begins instruction q2.

At this box there is a zero. So the machine replaces it with a '1', moves the left, and begins instruction q2. At this point, we have our first counted value: 1

The number it scans next is a '1', so it writes a '1' over it, moves to the right, and begins instruction q2.

Here the machine finds a '1'. So it replaces it with a zero, moves to the right to begin q2. But notice the similarity to when we clear the binary abacus.

At the next place it finds a zero. Instruction q2 tells it then to write a '1' instead and move to the left. This is equivalent to the carry procedure on the binary abacus.

So we see our first instance of clear and carry performed by the Turing Computer.

It now sees a zero. Instruction q1 tells it to write another zero, move to the left, and begin instruction q1.

It arrives upon the bumper. Instruction q1 tells it to write another '1' over it, move to the right, and begin instruction q2.

Now it sees a zero in the units place of our number display. Instruction q2 tells it to write a '1', move to the left, then begin instruction q1. In this way, we have added another number to get three.

It hits the bumper again, so it goes to the right and begins instruction q2.

Now it sees a '1' in the units place. Instruction q2 tells it to write a '0' instead, move to the right, and begin instruction q2. Here again is a clear procedure.

It sees another '1' in the next digit place. Instruction q2 tells it to write a zero, move to the right, and begin instruction q2. This is the second part of the clear/carry procedure.

Now it sees a '0'. Instruction q2 tells it to replace the '0' with a one, move the left, and begin instruction q1. This is the carry procedure that gets us to four. Now, the machine repeats the same clear/carry process as it had before.

Given an infinite amount of time, it will display the infinity of natural numbers.

See Peter Bradley's site on Turing Machines

Programing Abstract Machines: Turing Machines in Boolos & Jeffrey's Computability and Logic

by Corry Shores
[Search Blog Here. Index-tags are found on the bottom of the left column.]

[Central Entry Directory]
[Computation Entry Directory]

Turing Machines

Introduced by Boolos and Jeffrey

Our abstract machine is a man in a box. His cube travels along a railroad track.

The rail ties mark discrete squares along the track. The car may move along the track in either direction. We have rail workers on either end, always ready to add more track and ties as the box nears the edges.

Almost all the rail-ties have nothing but white ballast stones placed between them. But showing in a select few squares is one symbol from a finite set. They are configured using black ballast stones arranged against the background of the usual white ones.

The symbols in the square can be anything. And we will refer to them abstractly using variables, so to allow for every possibility. Hence we consider the finite number of symbols that may be found or placed in the squares S1, S2, ... Sn. The empty squares we will call S0. In our more concrete example, S0 will be a '0' in the square, and S1 will be a '1'.

The box's bottom is missing. So the man inside can read the symbols in each square. And he can change them or add a symbol to a blank square. The "poor mug" inside may also push or pull the box one place to the right or left. [below is a modification of the Boolos and Jefferey diagram. Image credits below.]

So the man performs his three actions: reading, writing, and moving. He does so according to a list of instructions. Any one instruction on the list has its own number i. He will be in a certain state at each stage of the computation process. What determines the state is the particular instruction he is performing. The total number of instructions is m. So we call the internal states q1, q2, ..., qm.
"He is in state qi when he is carrying out instruction number i."

Each instruction is formulated as a conditional. So it tells him what to do, depending on whether the symbol he reads is S0 or S1 or .... or Sn.

There are n + 4 things the boxed computer man can do. He can
1) Halt the computation.
2) Move one square to the right.
3) Move one square to the left.
4) Write S0 in place of whatever is in the scanned square.
5) Write S1 in place of whatever is in the scanned square.
n + 4) Write Sn in place of whatever is in the scanned square.

The instruction he carries-out is the state he is in. Depending on what that is, and on what symbol he is scanning, the man will perform one or some other of these n + 4 overt actions. And unless he is halted, he will also perform covert acts "in the privacy of his box." Namely, he will determine what will be the next instruction (the next state). "Thus, the present state and the presently scanned symbol determine what overt act is to be performed, and what the next state is to be." (22b)

There are a number of ways that we may specify the overall program of instructions the man is to follow. For example, we might use a machine table, a flow graph, or a set of quadruples. These three types of descriptions are illustrated below. This is how they appeared for a machine that writes three symbols S1 on a blank rail track, and then halts, scanning the leftmost of the three.

We will now look more closely at this example.

The man begins above an empty square (which we depict with a '0'). His instructions are, "if the square is empty, write symbol S1. And if there is a number S1 in the square, move one square to the left. Halt after writing three S1's"

More explicitly, when following instruction q1, the man is to
1) If the scanned symbol is S0, write an S1 in the initial square and repeat instruction q1. But
2) If the scanned symbol is S1, move left and following instruction q2 next.

So we will represent the instructions according to the three methods.

The computer box begins above a zero.

His initial part of his first instruction is a conditional. If it is '0', make it '1.' Then repeat instruction q1.

First the machine sees a zero. So it enters a '1'. Then it returns to the beginning of this instruction.

This first conditional of the initial instruction is displayed these ways for the different formats. In the machine table, we begin with q1. If it sees symbol So, he is to write an S1. The table displays the 'q1' in S1q1 to indicate that we go back to the beginning of the instruction.

In the flow chart, the circular arrow indicates the return to the same instruction.

And in the quadruples, the repeated q1 indicates the return to the instruction's beginning.

So the computer box returns to the beginning of q1. At the beginning, it says that if it reads S0, to write S1. But it does not read S0. The next part of the instruction says that if the symbol is S1, then move to the left and begin instruction q2. Thus our machine moves left.

We use an L to indicate the move-left operation in our three ways to show the program.

Instruction q2 is the same as q1, only one recurrence further in the process. Our computer sees a zero, so it enters a 1 and returns to the beginning of q2.

And the notations follow as before.

Now that it sees the 1 it has written, it moves left to begin q3.

It now sees a zero, so it writes a 1. But the instructions end here. Each of our displays of the program cease giving the man more tasks to perform.

Boolos, George, and Richard Jeffrey. Computability and Logic. Cambridge: Cambridge University Press, 1989.

Modified train track image from:

The Abstract Machines of Computation Theory. Marvin Minsky's Computation, Introduction and Finite-State Machines

by Corry Shores
[Search Blog Here. Index-tags are found on the bottom of the left column.]

[Central Entry Directory]
[Computation Entry Directory]
Marvin Minsky

Finite and Infinite Machines

Chapter 1 Physical and Abstract Machines

1.2 Machines as Physical Models of Abstract Processes

Someone describes a machine to us. We are not initially interested in how it is constructed. We first want to know how the machine works in principle. How does it work?

The idea of a machine usually centers around a some abstract model or process. (5c)

Consider a theory in physics. Perhaps material circumstances do not support the theory. In that case we criticize the theory, not the material world. However, imagine we design and build a machine. Soon it breaks down. So we fix it. Unlike in physics, we do not criticize the theory. Instead we find fault with the system's material parts. (5-6)

[In other words, we are designing, building, testing and evaluating abstract machines for computational tasks.]

Part I Finite State Machines

Chapter II Finite-State Machines

2.0 Introduction

We may also call finite state machines, 'finite automata.' The operations of these 'highly idealized' machines "proceed in clearly separate 'discrete' steps from one to another of a finite number of configurations or states. (11b)

Because they are finite, we may completely describe their structure and behavior without any ambiguity or approximation.
It is much harder to deal with more realistic models of mechanical systems, in which variable quantities like time, position, momentum, friction, etc., vary smoothly over continuous, imperceptibly changing ranges of values. (11c)
[These would be the natural machines that compute analogically. We later will discuss as examples Pythagoras' monochord and golden ratio.]

Nonetheless, our digital systems are still quite powerful, and in many ways they can approximate anything that an analog physical system can accomplish. [We later address also the issue of approximation in terms of the analog/digital argument from "noise."]

2.0.1 Moments of Time

The finite machine's operations occur throughout a linear sequence of discrete time moments, "between which nothing happens." (12c)
One may imagine these moments as occurring regularly like the ticking of a clock, and we identify the moments with integers -- the variable for time, t, takes on only the values 0, 1, 2, . .

2.1 States and Signals

From the point of view of its user or environment, the machine may be regarded as a "closed box with input and output channels." Every now and then, the user acts upon the machine through the input channels. And at other times the machine acts upon the user through the output channels. Unless we want to know how things work on the inside of the box, we do not need to know what takes place inside it. Hence we call it a "black box."

We are concerned with the set of distinguishable states that characterize a channel at any given moment. Each time-point is discrete. One of a finite number of possible states or conditions corresponds to each discrete moment in time.

We might symbolize the state using alphabet letters, numbers, or such words as "yes" and "no." In our examples, we consider our electric switch to be in either an "on" or an "off" position. So our finite state machine theory is not concerned with continuous or analog devices "which can be set to transmit any of an infinite set of fractions of a signal."

We want to know how our machine behaves. So we need to determine how its outputs depend on its inputs. Then we could know the output for some certain specified time.
One restriction we will introduce here is this -- the output state at the moment t doesnot depend on the input state at that same time t. This is to say, that we won't admit the possibility of signals traversing a unit instantaneously. But the output at timet + 1 will usually depend, at least in part, on the input signal at the previous momentt. This restriction reflects the physical impossibility of instantaneous transmission from one place to another. It is necessary here for a simpler reason: to prevent unrealizable -- paradoxical -- descriptions of situations when channels are interconnected, and to prevent infinitely fast behavior -- also physically unrealizable. (14 c.d, my emphasis on instantaneous)
[Soon we will examine natural computers and the way they instantaneously calculate infinite computations.]

Minsky, Marvin. Computation: Finite and Infinite Machines. London: Prentice-Hall International, Inc., 1972.
